GASTEK 20kW 24kW 28kW Gas-accensus Boiler cum duplici ambitu commoda●CE certificatorium numerus: GB 008251 001Calor efficientiam:> XC%-24 horas vigilantiae et ECO munus pro gas salutarisOpus sonitus<45dB● Cursor intentionis tam gravis est quam 120v.Satus-sursum aquae pressio tam humilis est quam 0.25bar.

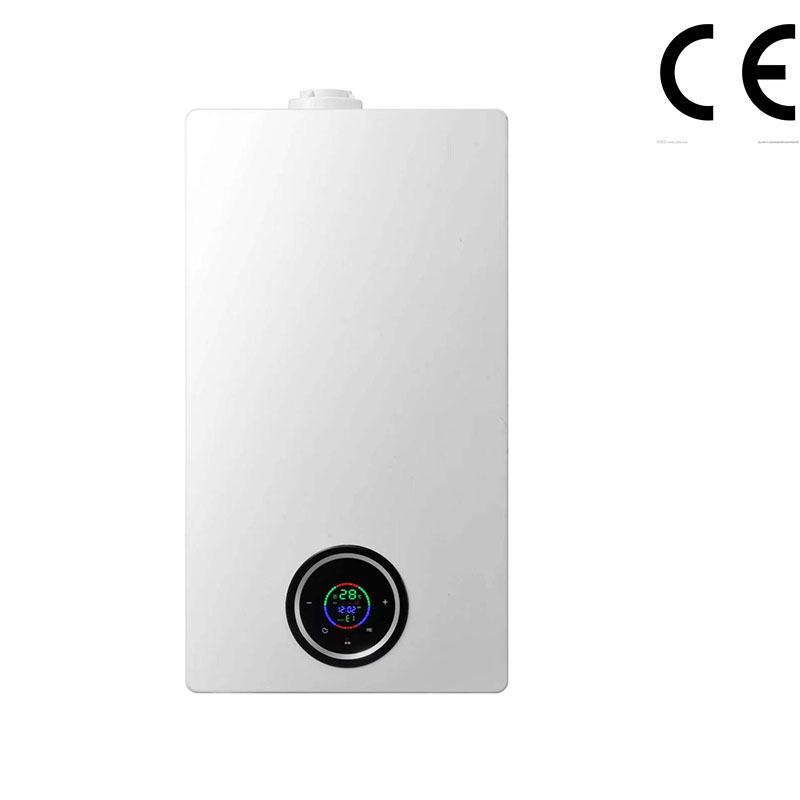

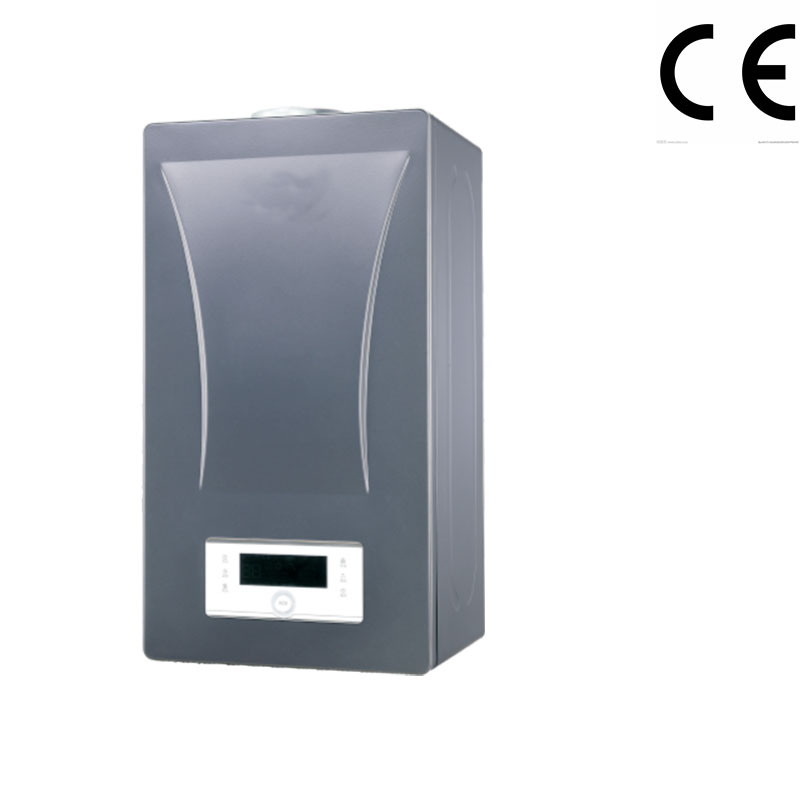

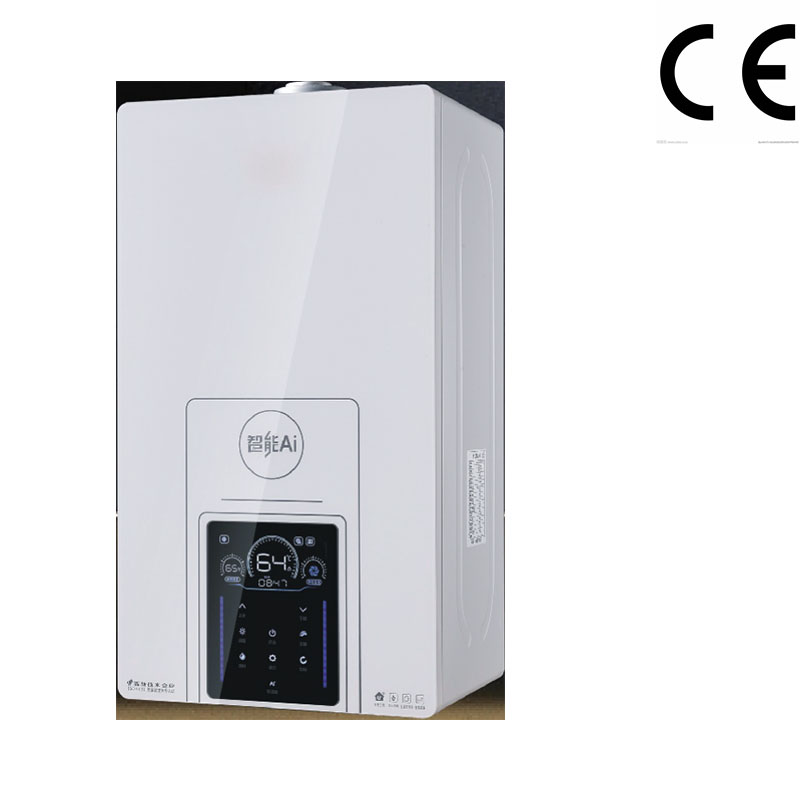

20kW 24kW 28kW Gas-accensus Boiler cum duplici ambitu Features:
Heating area range: 60-220m2
Calida aqua output range: 10-14 Lts / min
●Power range: 20,24,28kW
Multiplex praesidia
CE Certified Duplex Circuitus 20kW 24kW 28kW Gas-accensus Boilerus Parameter Technical:
| Exemplar no | Unitas | L1PB20-ZD01 | L1PB24-ZD01 | L1PB28-ZD01 |

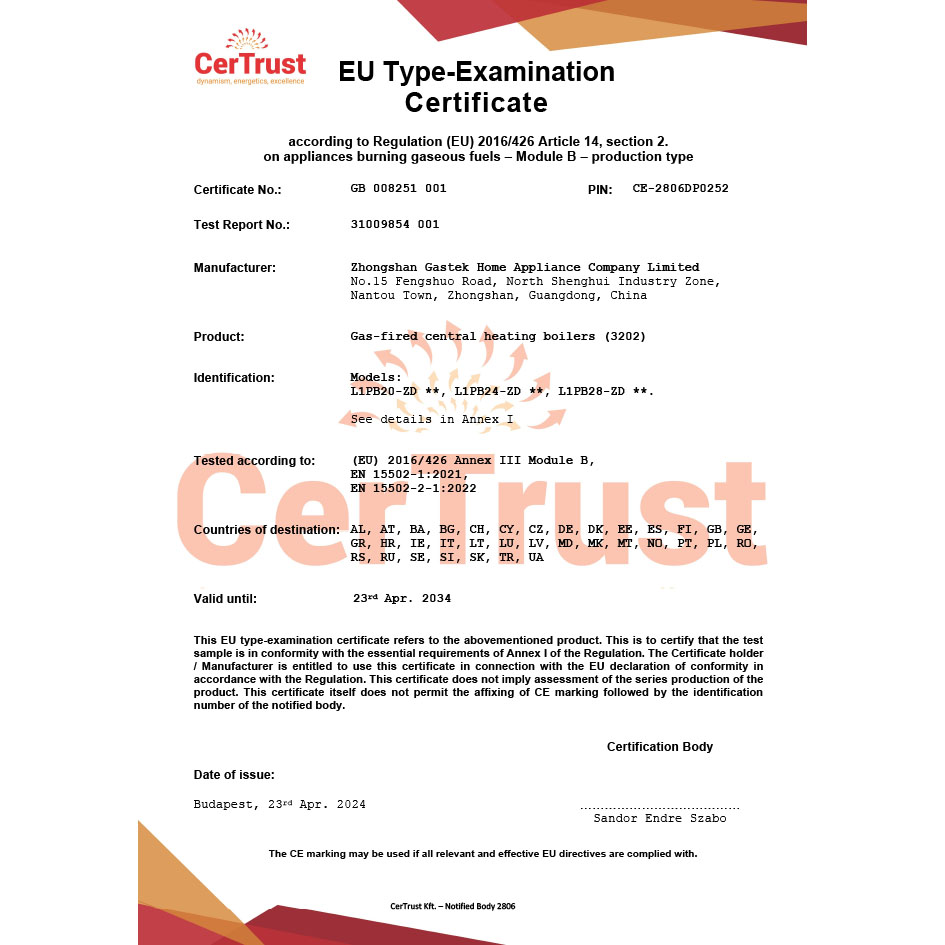

| CE Quisque no | GB 008251 001 | |||
| Aestimavit scelerisque potestatem | KW | 20.0 | 24.0 | 28.0 |
| Minimum calor input | KW | 11.0 | 11.0 | 11.5 |
| Minimum calor output | KW | 17.8 | 21.4 | 25.0 |
| Minimus calor output | KW | 9.8 | 9.8 | 10.2 |
| Gas type-G20 | of* | |||
| Rated gas pressura range | Pa | 1000-3000 | ||
| Maximum gas consumptio in modo calefaciendi (G20) | m3/ h* | 2.1 | 2.6 | 2.8 |
| Maximum gas consumptio in mode DHW (G20) | m3/ h* | 2.1 | 2.6 | 2.8 |
| Efficiens at potestatem scelerisque aestimavit | % | >89 | >89 | >89 |
| Voltage | AC 220V，50Hz | |||
| Potestas consumptio | W | 130.0 | ||
| Praesidium Class IP | X4D | |||
| Temperatura calefaciendi imperium range | ℃ | 30~80 | ||
| Area calefactio | m2 | 100 | 150 | 200 |
| Pressura aquae applicata in mode calefactionis | bar | 1-3 | ||
| DHW temperatura range imperium | ℃ | 30-60 | ||
| Aquam calidam capacitatem (Δt=25K) aestimavit | L | 10.0 | 12.0 | 13.9 |
| Aqua applicata pressio in DHW modo | bar | 0.5-6 | ||
| Sentinam levare | m | 5.0 | 6.0 | 7.0 |
| Expansio piscina capacitatem | L | 5.0 | 5.0 | 6.0 |
| Aqua frigida limbum fistula | digitis | G3/4 | ||
| Aquam calidam exitus fistulae | digitis | G1/2 | ||
| Gas inlet pipe | digitis | G3/4 | ||
| Aliquam ferro Coaxial tibiae diametri | mm | 60/100 | ||
| fistulae coaxial Longitudo | mm | 1000 | ||
| Net pondus / Pondera crassa | kg | 26.5/29.5 | 27.5/30.5 | 30/32 |
| Corpus magnitudine | mm | 710*420*240mm | ||
| Stipare dimension | mm | 830*480*320mm | ||
| Loading capacitatem(20'GP) | pcs * | 170 | 170 | 170 |
| Loading capacitatem(40'HQ) | pcs * | 430 | 430 | 430 |
