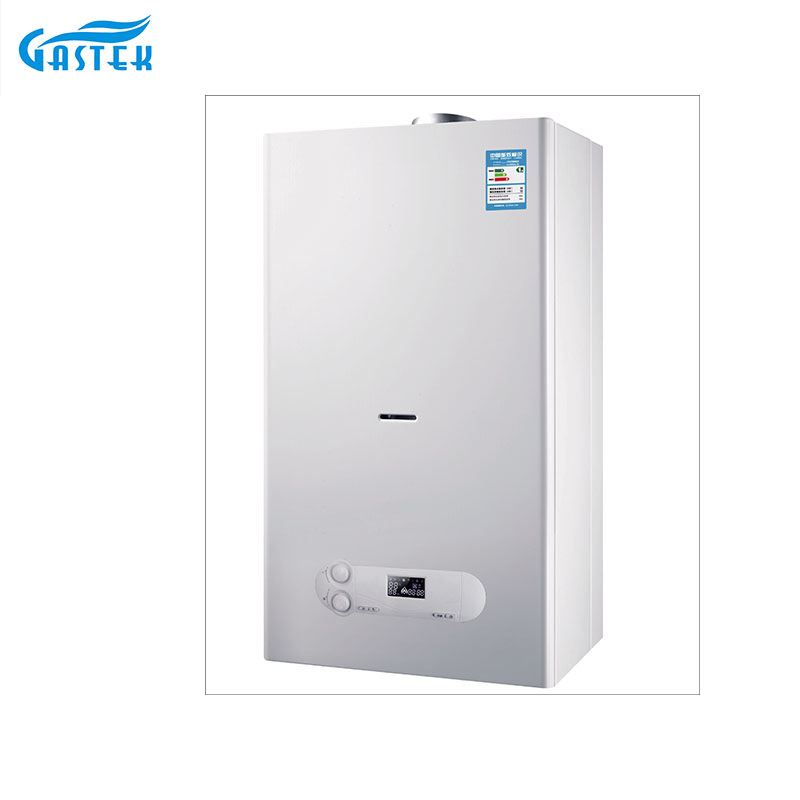

GASTEK 32kW 40kW Residentiales Gas Boiler pro media Features calefactio:
Heating area range: 60-300m2
Hot aqua output range: 8-20 Lts / min
Power range: 16-40kW
Multiplex praesidia
32kW 40kW Residentiales Gas Boiler pro Central calefactio Parameter
|
Exemplar no |
Unitas |
L1PB16-A |
L1PB20-A |
L1PB24-A |
L1PB28-A |
L1PB32-A |
L1PB36-A |
L1PB40-A |
| Aestimavit scelerisque potestatem |
KW |
16.0
|
20.0
|
24.0
|
28.0
|
32.0
|
36.0
|
40.0
|
| Nominalis calor output |
KW |
14.3
|
17.8
|
21.4
|
24.9
|
28.5
|
32.0
|
35.6
|
| Minimum calor input |
KW |
7.2
|
8.1
|
9.6
|
11.5
|
12.8
|
13.8
|
15.5
|
| Minimum calor output |
KW |
6.2
|
6.9
|
8.2
|
9.8
|
10.8
|
11.6
|
13.0
|
| Gas type-G20 |
|
Naturalis Gas |
| Rated gas pressura |
Pa |
1000-3000 |
| Voltage |
V
|
AC 220V，50Hz |
| Potestas consumptio |
W
|
110
|
110
|
110
|
130
|
130
|
210
|
210
|
| Genus exhauriunt |
|
coactus exhauriunt |
| Ignitio |
|
Pulsus ignitio |
| Temperatura temperantiae modus |
|
Electronic potestate |
| Ostendere |
|
LCD |
| Fuse |
A
|
3
|
| Electric offensa protection |
|
ORDO I |
| IMPERVIUS grade |
|
IPX4 |
| Calefaciens temperatura imperium range |
℃
|
30 ~ 80 (radiator), 25-60 (area calefactio) |
| Area calefactio |
m2 |
60-120 |
60-150 |
60-200 |
60-220 |
60-260 |
60-280 |
60-300 |
| Pressura aquae applicata in mode calefactionis |
bar |
1-3 |
| DHW temperatura range imperium |
℃
|
30-60 |
| Aquam calidam capacitatem (Δt=25K) aestimavit |
L
|
8.0
|
10.0
|
12.0
|
14.0
|
16.0
|
18.0
|
20.0
|
| Aqua applicata pressio in DHW modo |
bar |
0.2-6 |
| Fistula exhausta diamter |
mm |
60-100 |
| Fistula exhausta longitudinem |
mm |
1000.0
|
| Sentinam levare |
m
|
5
|
5
|
6
|
7
|
7
|
8
|
8
|
| Expansio piscina capacitatem |
L
|
5
|
5
|
5
|
6
|
6
|
8
|
8
|
| Aqua frigida limbum fistula |
digitis |
G3/4 |
| Aquam calidam exitus fistulae |
digitis |
G1/2 |
| Gas inlet pipe |
digitis |
G3/4 vel 1/2 |
| Net pondus / Pondera crassa |
kg |
25/27 |
26/28 |
27/29 |
28.5/31 |
36.5/40 |
40/43 |
40/43 |
| Corpus magnitudine |
mm |
710*420*250 |
740*410*317 |
740*510*317 |
| Stipare dimension |
mm |
830*480*310 |
830*480*400 |
830*580*400 |
| Loading capacitatem(40'HQ) |
pcs * |
500
|
390
|
320
|
